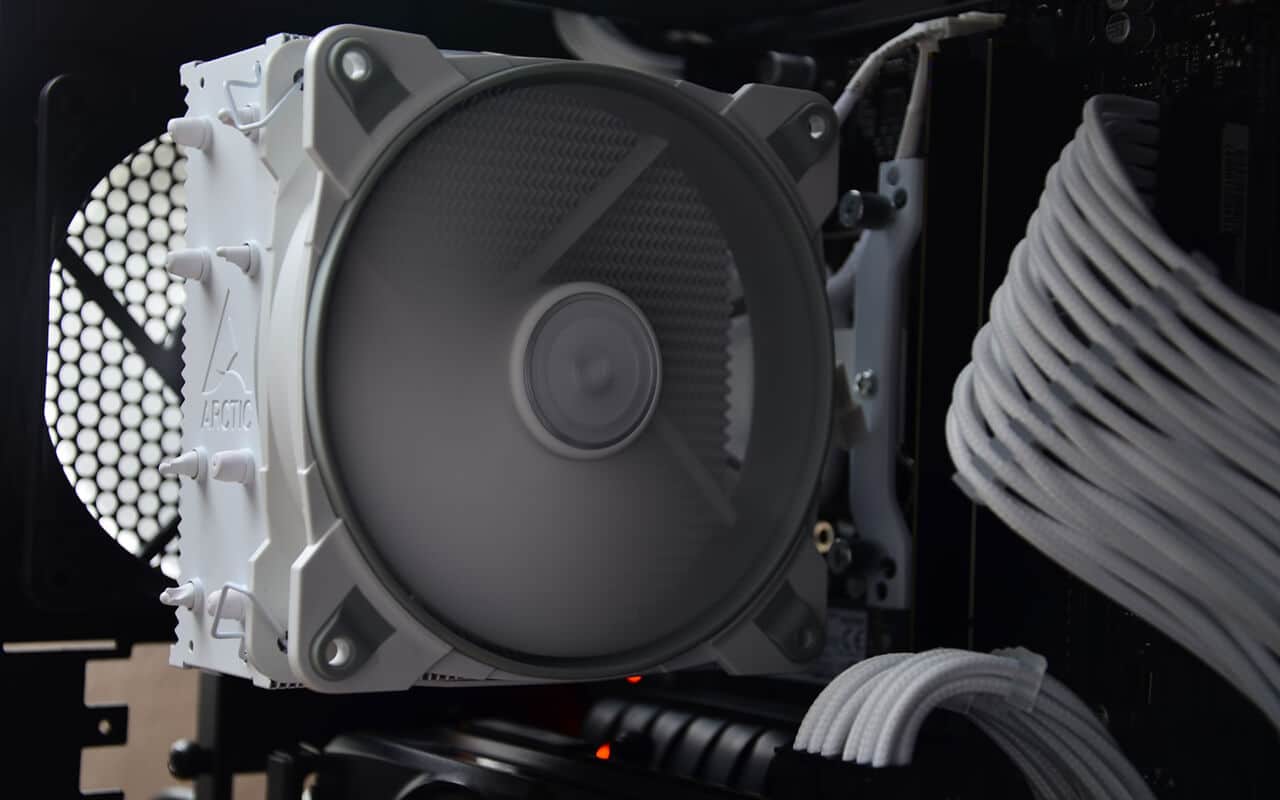

CPU Cooler Won't Fit the Motherboard? Diagnose the Real Cause

If your CPU cooler won't fit the motherboard, it's almost never a "this cooler just doesn't work" problem — it's one of a handful of specific, identifiable mismatches: the wrong mounting bracket for your socket, RAM that's too tall, a case that's too shallow, a radiator that collides with your GPU, or a backplate that's seated wrong. Below is a symptom-by-symptom breakdown so you can figure out which one you're actually looking at.

Wrong or missing mounting bracket for your socket

This is the number one cause, and it's almost always a socket-generation mismatch rather than a defective part.

AMD AM5. AMD kept the same mounting hole pattern and stack-up height between AM4 and AM5, so a cooler that supports AM4 will generally still bolt on to AM5 — Noctua confirms all its AM4 mounting kits are upward-compatible with AM5. The catch is coolers that use a custom backplate instead of the motherboard's stock one. AM5's backplate is soldered/fixed to the socket and isn't removable the way AM4's was, so any cooler that expects to swap in its own backplate (some older AM4 coolers, including Noctua's NH-L9a-AM4) simply can't be mounted that way on AM5 without an adapter kit. (Noctua's AM5 guide, Corsair's AM5 bracket explainer)

Intel LGA1851. LGA1851 (Core Ultra 200S / Arrow Lake) uses the same mounting hole positions as LGA1700, so LGA1700 coolers and backplates line up and bolt straight on — Intel and Noctua both confirm this. The one caveat: contact frames built specifically for LGA1700's socket geometry aren't interchangeable with LGA1851's, so if you're using a third-party contact frame rather than a standard cooler mount, check its specific compatibility. (Noctua's LGA1851 guide)

LGA1700 vs. LGA115x/1200. This was the real break — LGA1700's larger, non-square socket needed a new bracket or an offset mount, which is why so many pre-2021 coolers didn't fit Alder Lake/Raptor Lake boards out of the box.

The fix that actually works: every major cooler brand shipped upgrade kits for these transitions. Noctua gives its AM5 SecuFirm2™ kits (NM-AM5/4-MP83 and -MP78, depending on your cooler's mounting pitch) away free with proof of purchase of a Noctua cooler plus an AM5 board or CPU. be quiet! says its AM4 top-mount coolers need no separate kit for AM5 since AMD kept the dimensions identical, though older/discontinued coolers can get a paid mount kit on request. Cooler Master and Arctic sell (rather than always give away) AM5 bracket upgrades for their air coolers. Check your cooler's product page or support form before assuming it's simply incompatible — a $0–15 bracket usually solves this. (Noctua AM5 kit, be quiet! AM5 compatibility, Cooler Master AM5 bracket kit)

Check price on Amazon

RAM clearance under a big air cooler

Twin-tower air coolers like the Noctua NH-D15 (and its successor, the NH-D15 G2) hang a fan directly over the RAM slots nearest the socket. Tall RGB heat-spreaders are the usual victim.

Noctua's own spec for the NH-D15 G2: in the standard dual-fan configuration it clears RAM up to 32mm tall. Move the front fan up 5mm and you gain clearance for 37mm RAM, but that costs you an extra 5mm of case depth. Drop to single-fan mode and, thanks to recessed lower fins, you get at least 59mm of RAM clearance; swapping in a smaller 120mm fan over the RAM slot opens it up to roughly 52mm. If your RAM's heatsink is taller than the cooler's stated clearance, the fan simply won't seat — the fix is one of: reposition/raise the front fan, run single-fan mode, or buy low-profile RAM. (Noctua NH-D15/G2 RAM clearance FAQ)

Case clearance — the cooler is simply too tall

Every air cooler lists a maximum height in mm, and every case lists a maximum CPU cooler height it supports. If the cooler's number is bigger than the case's number, it isn't going in — full stop, regardless of socket compatibility. This shows up most with dual-tower coolers (many sit 165–170mm tall) going into compact or SFF cases rated for 150–160mm or less.

Before buying, put the cooler's spec sheet next to your case's spec sheet. If you're working in a small-form-factor build, a low-profile cooler is the straightforward fix rather than forcing a tower cooler to fit — see our best low-profile CPU coolers roundup for options that clear tight cases.

AIO radiator doesn't fit

With liquid coolers, "won't fit" usually means the radiator-plus-fan stack, not the pump/block. A standard radiator runs roughly 27–30mm thick, and each fan bolted to it adds another ~25mm, so a 360mm AIO with fans can be a 55–80mm-deep stack depending on the model. Two things commonly conflict with that:

• Top-mount vs. case height — the stack has to clear the case's rated top radiator thickness, and it can also collide with tall RAM or VRM heatsinks directly beneath it.
• Front-mount vs. GPU length — mounting the radiator up front eats into the case's usable GPU length, sometimes by 20–60mm depending on case geometry, since the radiator/fan stack now sits between the front panel and your graphics card.

Check the case manufacturer's "with radiator installed" GPU clearance figure, not just its unobstructed number, before assuming a fit issue is a defect.

Backplate problems

A cooler that physically lines up but won't tighten down evenly is usually a backplate issue:

• Orientation — most backplates are keyed to one orientation; installed backward, the standoff holes won't align with the socket holes.
• Threaded vs. push-pin standoffs — mixing parts from two different mounting generations (e.g., using AM4-era push-pin standoffs with an AM5 threaded backplate) will leave screws with nothing to bite into.
• Pre-attached backplates — many current motherboards ship with the backplate permanently fixed to the board (this is standard on AM5 and common on recent Intel boards). If your cooler's kit assumes you're installing a separate backplate, you likely need the manufacturer's specific "uses the stock backplate" version of the mounting kit rather than the universal one.

VRM and M.2 shroud interference

On modern boards with large VRM heatsinks and tall M.2/chipset shrouds crowding the socket, a cooler's base plate, fan shroud, or mounting screws can physically bump into the motherboard's own heatsinks before the cooler is fully seated — especially with low-profile coolers, which sit closer to the board, or oversized tower coolers with wide base plates. This is a case-by-case fit issue rather than a socket-compatibility one; check user photos or QVL-style compatibility notes for your specific board-and-cooler combination if the cooler catches on nearby components before it seats flush.

It physically fits but pressure is wrong

Sometimes everything lines up and it still doesn't feel right — that's a mounting-pressure problem, not a fit problem:

• Uneven tightening. Tighten mounting screws gradually and in a crossing pattern (like lug nuts on a wheel), not one screw all the way down before the next. Uneven pressure tilts the cooler and leaves gaps in the thermal paste.
• Protective film left on the cold plate. Many coolers ship with a thin plastic film over the copper contact surface to prevent scratches in shipping — it has to be peeled off before installation. Left in place, it acts as an insulator between the cooler and the CPU and can send temperatures into thermal-throttling territory even though the cooler "fits" and screws down fine.
• Offset mounting for Ryzen's hotspot. On AM5 chiplet-based Ryzen CPUs (7000/9000 series), the hottest point on the heat spreader sits south of dead-center, over the compute chiplet(s). Some brands — Noctua, Thermalright, and Thermal Grizzly among them — sell offset AM5 brackets that shift the cooler roughly 7mm off-center to sit more directly over that hotspot, which vendor testing shows can shave a few degrees off core temps on high-end parts. This isn't a "won't fit" fix so much as a "fits better" upgrade, and it's optional. (Noctua on offset AM5 mounting, Thermal Grizzly AM5 offset kit)

Check price on Amazon

Pre-purchase checklist

Before you buy a cooler — or before you troubleshoot one that's already refusing to fit — confirm these against the box or spec sheet:

• Socket list printed on the cooler's box or spec page includes your exact socket (AM5, LGA1851, LGA1700, etc.) — not just "the same brand as your last build."
• Cooler height (mm) is at or under your case's maximum supported CPU cooler height.
• RAM clearance (mm) for your cooler's configuration is taller than your RAM's actual heatsink height — check the memory kit's spec, not just its listed form factor.
• TDP rating on the cooler is honestly matched to your CPU's rated (not just base) power draw, especially on unlocked/overclocked chips that can pull well above their box TDP.
• Radiator clearance (AIOs only) — case's "with radiator" clearance figures for both GPU length and top-mount thickness, not just the unobstructed numbers.

Frequently asked questions

Do all CPU coolers fit all motherboards? No. Fit depends on matching the cooler's supported socket list to your motherboard's socket, plus case height and RAM clearance. A cooler rated for AM5 won't mount on LGA1700 without an entirely different bracket, and vice versa.

Does AM5 use the same cooler mounting as AM4? Mostly yes — hole spacing and stack height are identical, so most AM4-compatible coolers mount on AM5 boards. The exception is coolers that ship with their own custom backplate instead of using the motherboard's stock one, since AM5's backplate isn't removable.

Will an LGA1700 cooler fit LGA1851? Yes, for standard coolers and backplates — the two sockets share the same mounting hole positions, confirmed by both Intel and Noctua. Purpose-built LGA1700 contact frames are the one exception; check compatibility separately if you're using one.

Do CPUs come with their own cooler? Many mainstream Intel and AMD CPUs ship with a bundled stock cooler, but high-end and unlocked SKUs (Intel K-series, many AMD X-series and higher-core-count parts) typically don't. Check the CPU's official spec page before assuming one's in the box.

How do I know if my cooler is too tall for my case? Compare the cooler's published height (in mm, base to top of fan) against your case manufacturer's maximum supported CPU cooler height spec. If the cooler's number exceeds the case's, it won't close.

The final verdict

Nearly every "won't fit" case traces back to one of a small number of causes: a socket-mismatched bracket, RAM or case clearance you didn't measure, an AIO radiator stack eating into GPU or case space, or a backplate seated wrong. Check your cooler's socket list and height/clearance specs against your board and case before you assume something's broken, and grab the manufacturer's free or low-cost upgrade kit if you've just switched socket generations. If you're building in a tight case, our best low-profile CPU coolers guide and best 80mm case fans roundup are good starting points for compact builds, and if you're worried about running a rig cold rather than hot, see how cold is too cold for a CPU.
